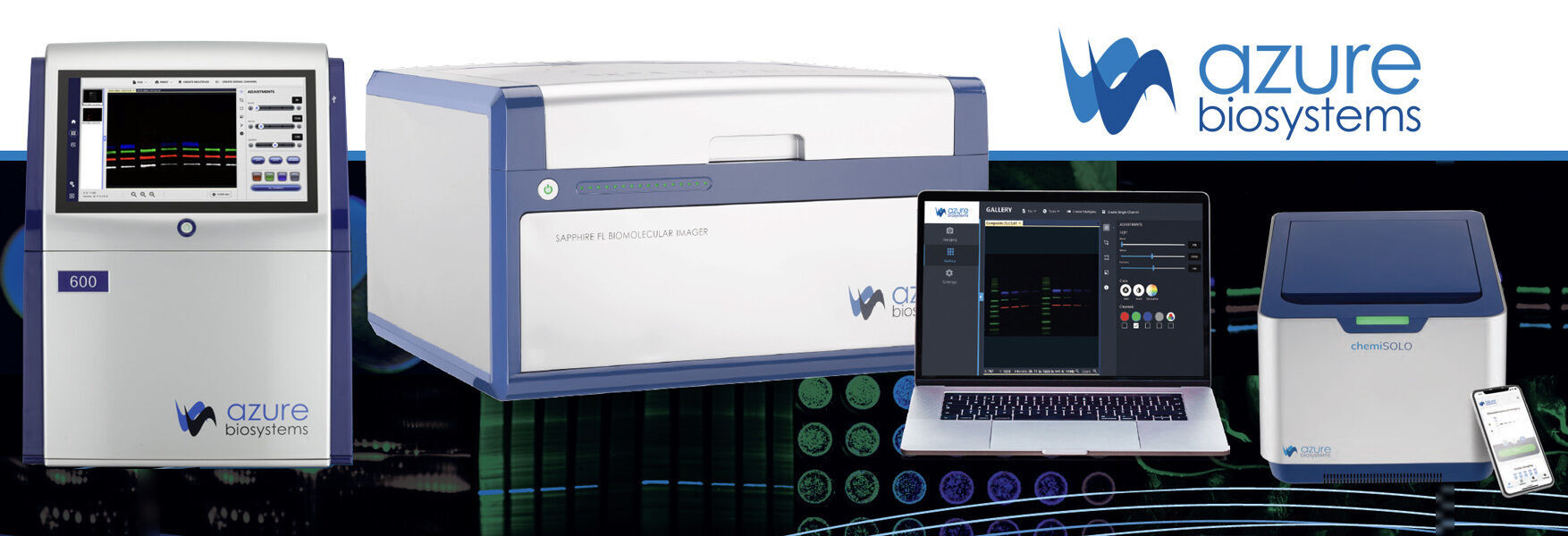

Azure Biosystems develops high-performance instruments for image capture and analysis as well as high-quality reagents optimized to support select imaging applications. Our products cover the full spectrum of capabilities for documentation and quantitative analysis of gels, blots, slides, tissue samples, small animal models, plants, and more.

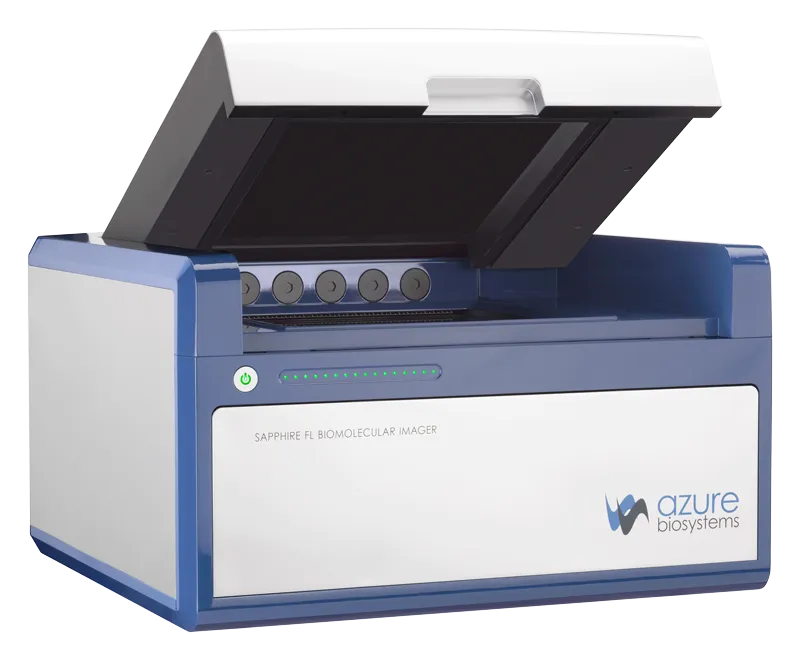

Sapphire FL Biomolecular Imager – IS4000
Powerful performance, maximum flexibility
For labs that need the highest levels of imaging performance—sensitivity (PG to FG), resolution (down to 5 μm), dynamic range (over 7-log), field-of-view (25 cm x 25 cm scannable area)—or want an imager that can keep up with their diverse and dynamic research needs, we'd like to introduce the Sapphire FL Biomolecular Imager.
It is the ultimate biomolecular imager for flexibility. With customizable and user-changeable laser and filter modules, it easily adapts to your changing needs and advancing research. It offers customizable and user-changeable optical modules, 5–1000µm resolution scans, a Z-plane range from -1.0 to +6mm, 5 anesthesia output ports for imaging living animals, chemiluminescence detection through the Chemiluminescence Module, and much more.

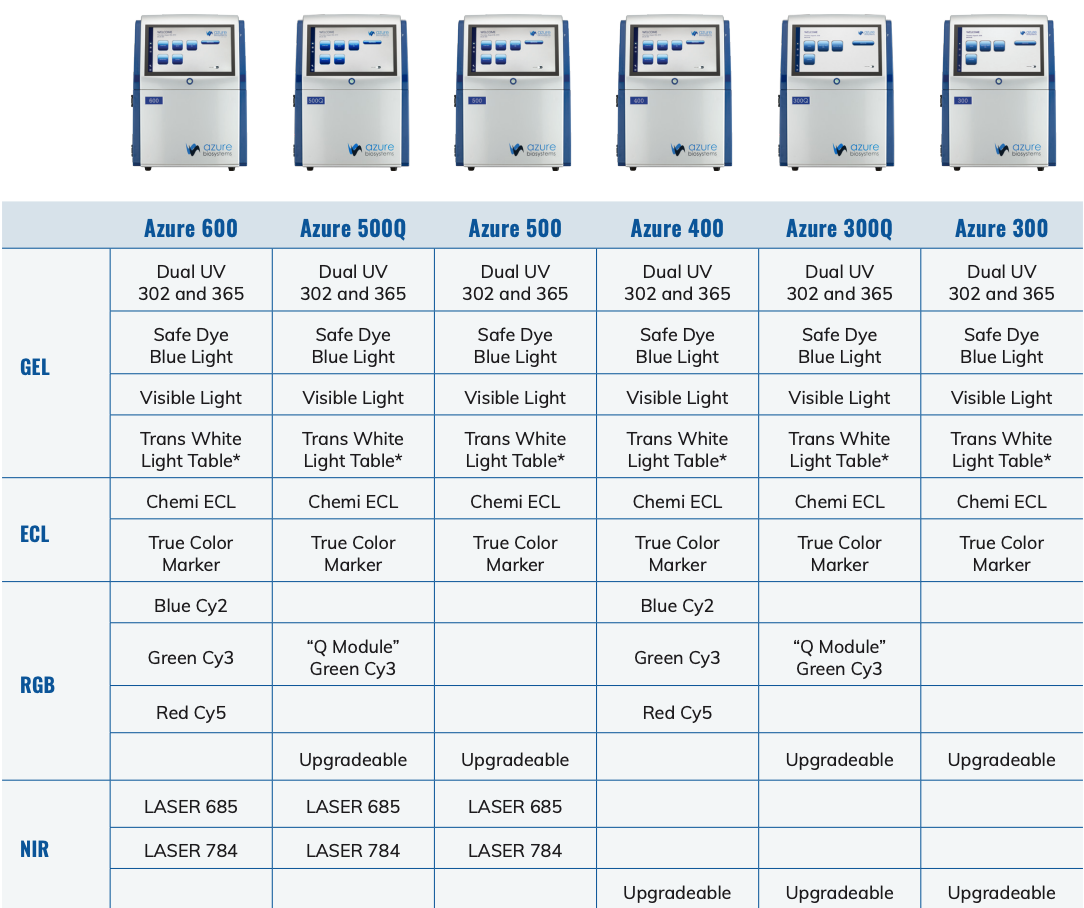

Azure Imaging Systems – Azure 300, 400, 500, 600
Four models suitable to all your needs
This family of gel and blot imagers offers fast, sensitive, high-resolution 9MP CCD-based detection in a small, benchtop-friendly footprint.
The 300 is also upgradable to the 400, which adds visible (RGB) fluorescence detection, or the 500 for near infrared (NIR) fluorescence detection.
All of these models can be upgraded to the 600 which combines all of these detection modes—white light, blue light, UV, chemiluminescence, visible fluorescence, and NIR fluorescence—in a single powerful instrument.

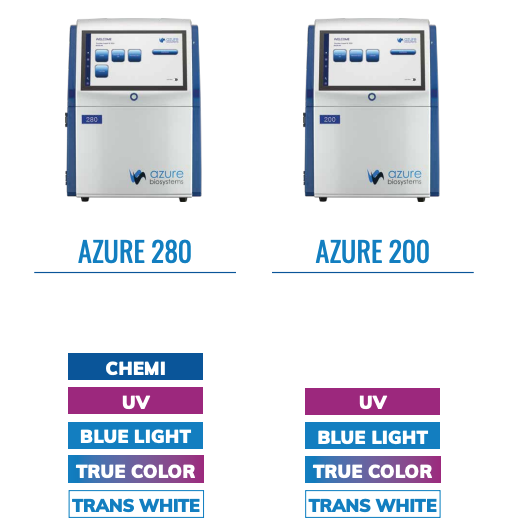

Azure Imaging Systems – Azure 200 and Azure 280
The economical choices models suitable to all your budget
Â
This family of imagers offers fast, sensitive, high-resolution 5MP CCD-based detection in a small, benchtop-friendly footprint.
Choose the basic 200 for streamlined gel documentation and densitometry (white light, blue light, and UV) and then upgrade later as your studies change.
the model 280 Offers sensitive digital chemiluminescent detection at a low cost
The Azure 280 gives you the same sensitivity as chemiluminescent detection on film, but without the hassles of a darkroom and the expense of a bulky film developer.

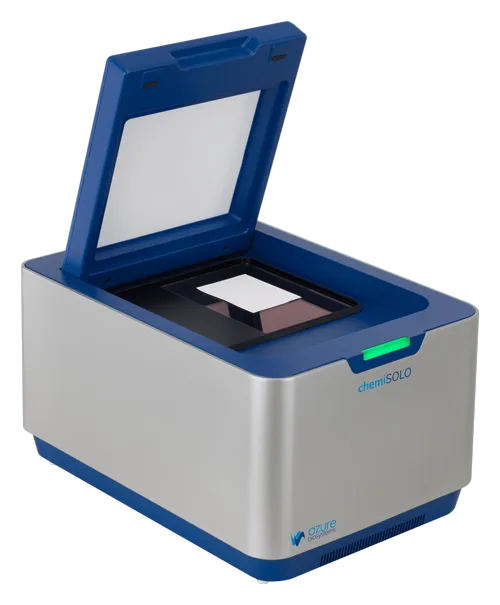

chemiSOLO – CS1000
Personal chemiluminescent imager
chemiSOLO detects low-expressing proteins with femtogram sensitivity and captures marker images at the push of a button.
A unique web browser interface allows chemiSOLO to be controlled by phone, tablet, or PC, without the need to install any additional software.
In addition to Western blots, it captures pictures of colorimetric blots or visible stained protein gels, like Coomassie blue or silver stain.
chemiSOLO's wide dynamic range can be further enhanced by using EDR, our Extended Dynamic Range function. This feature allows for linear, quantitative data, while avoiding saturation.

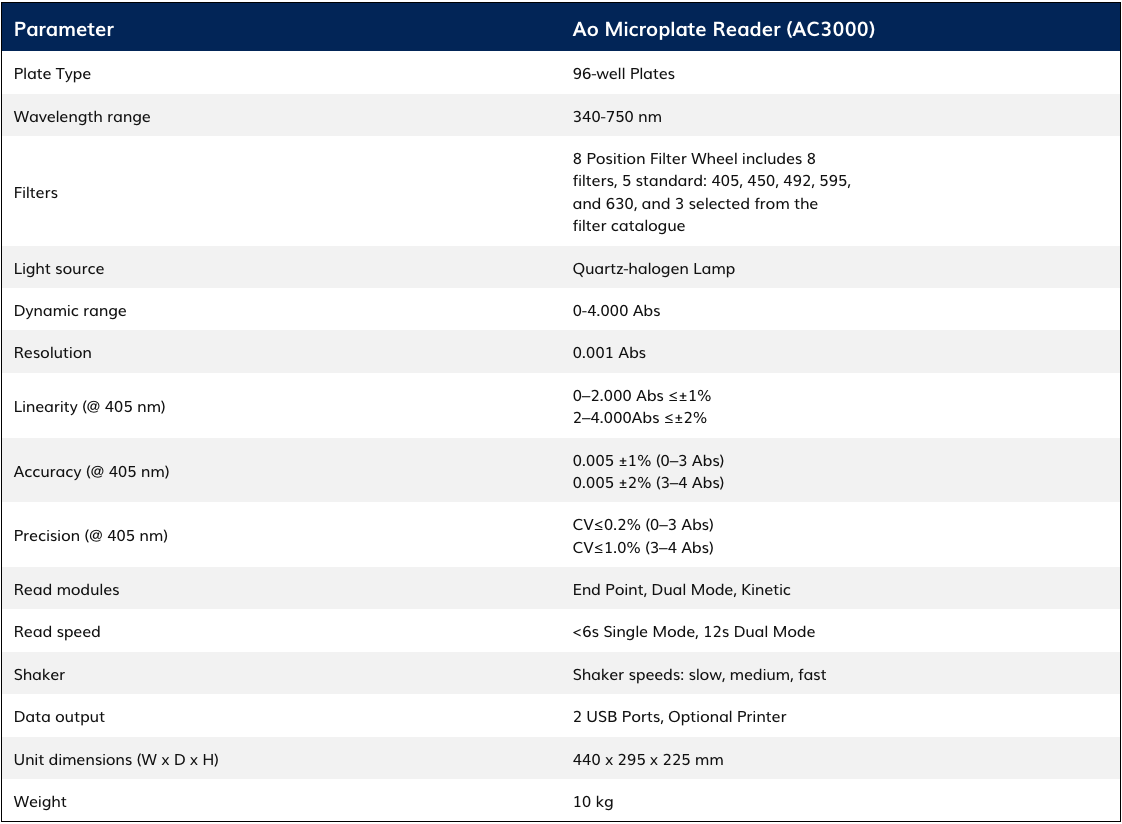

MICROPLATE READER – AC3000
Filter-based 96-well plate absorbance microplate reader for ELISA, Bradford, Lowry assays & more
